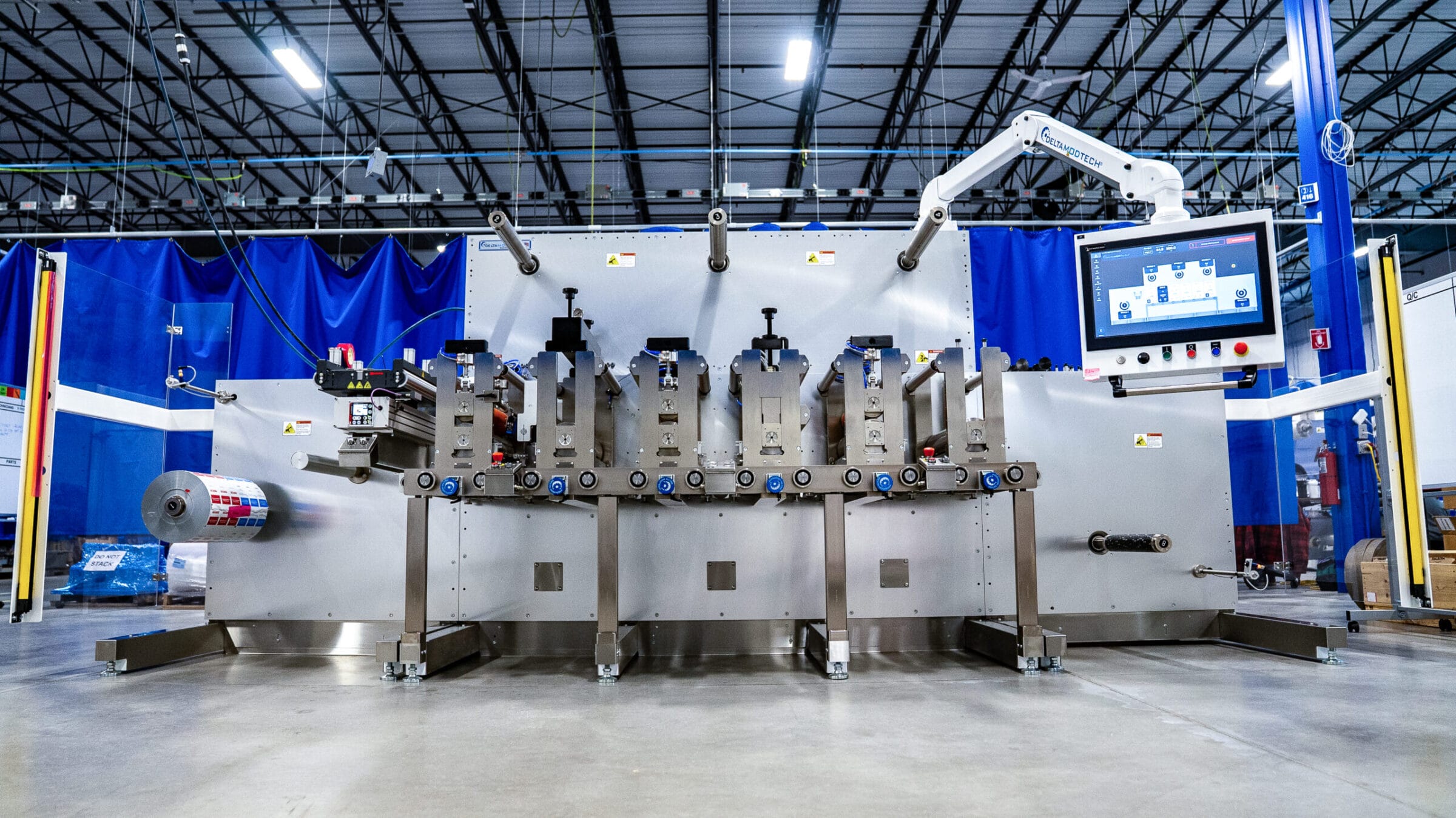

Demo Machine#7: 20″ Crusader®
This demonstration features 6 unwinds/rewinds and 6 rotary modules on a 20” wide web base
Delta ModTech offers the Crusader® in many web widths to meet your requirements. We also offer our DMT™ Converting machines at web widths up to 80″ (2m). Click here to learn more about the Crusader®.
Delta Crusader® Standard Technical Specifications
| Max Web Width: | 254 mm (10 in), 330 mm (13 in), 406 mm (16 in), 508 mm (20 in), 609 mm (24 in) |
| Max Speed: | Up to 91 m/min (300 ft/min)* (Higher speeds available upon request) |
| Unwind/Rewind Mandrel Diameter: | 76 mm (3 in) standard, other sizes available |
| Control System: | Delta ModTech INTELLI-MOD® HMI |
| Drive System: | Individual Servomotor Control |
| Cabinet Construction: | Welded Steel Frame, Aluminum Front Plate |
