Roll-to-roll slot-die is becoming the industry standard for coating battery electrodes. Not only can slot-die achieve amazingly thin wet coatings of <2 microns; it yields little to no waste and provides better uniformity and precision compared to other coating methods.

But with the growing dominance of the lithium ion (Li-ion) battery, it’s actually the latest developments in slot-die’s patch-coating capability that could revolutionize the industry. By making clean, uniform, and accurate breaks in the coating process, manufacturers can eliminate both waste and downstream processing, driving production costs down considerably.

In the following, we’ll discuss slot-die’s key advantages, then turn to patch-coating – what it is, why slot-die is ideally suited to provide it, and how it solves a significant challenge in Li-ion battery production. We’ll also describe the technological advances that have enabled a new generation of high-performance patch-coating capabilities.

Slot-die’s superior performance sets the stage

The demand for smaller, higher energy Li-ion batteries has intensified the need for thinner coating layers that must be just as accurate and precise as their thicker counterparts. At the same time, the commodification of Li-ion batteries is making cost-efficiency a top priority.

It’s for these and related reasons that slot-die is becoming the preferred coating option for Li-ion battery production. Slot-die is a volumetrically pre-metered coating system, which means it dispenses an electrode coating, or slurry, onto a current collector substrate in a pre-metered volume that’s equal to the desired coating thickness. To change the thickness, you just adjust the pump (see image below).

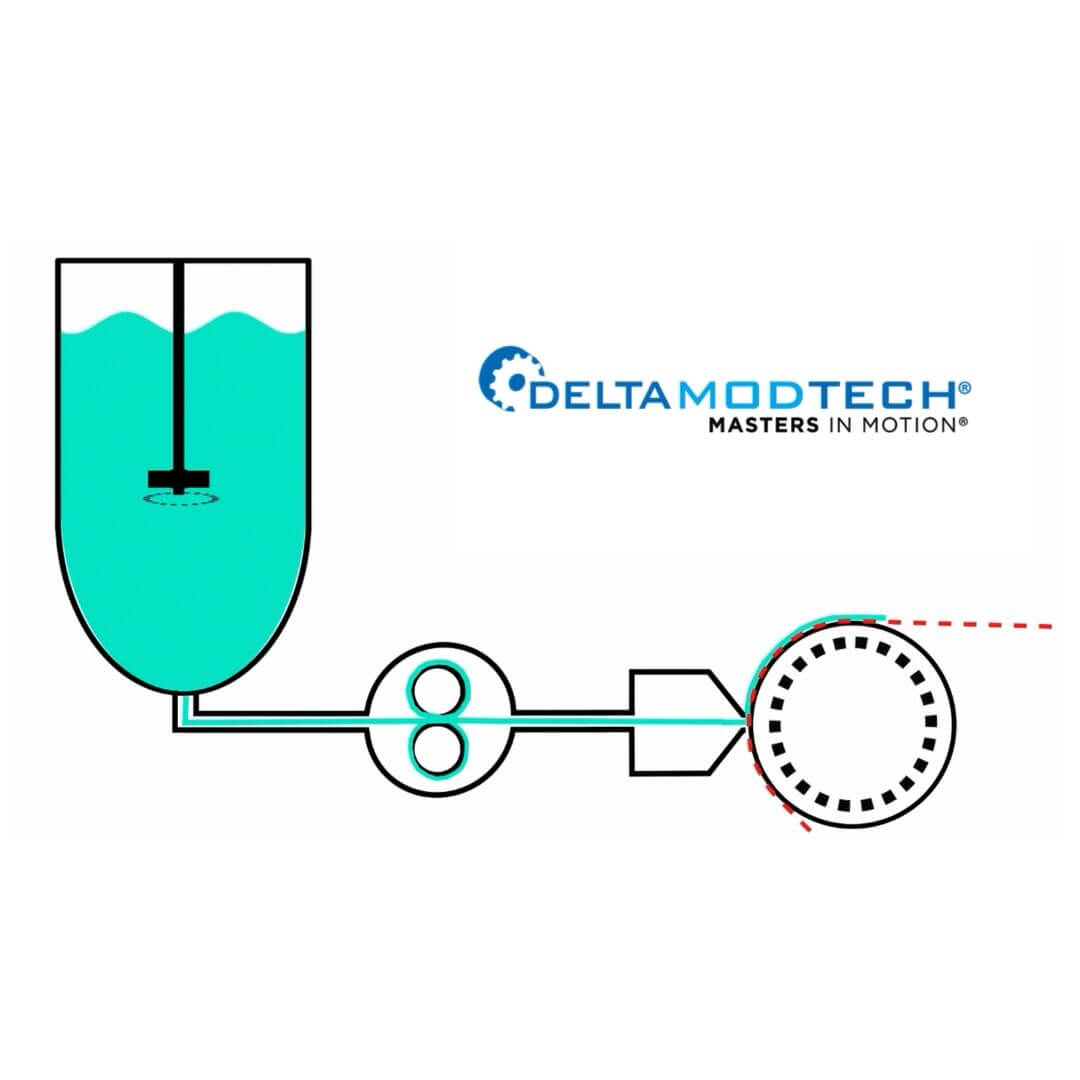

Schematic of slot-die coating
Schematic of slot-die coating

Other coating options do exist, in particular, mechanically metered coating systems such as knife-over-roll, comma-roll, and reverse-roll coating. These function by employing two mechanical surfaces, i.e., rollers, to create a gap equal to the desired coating thickness. The coating floods the substrate surface as it moves through the gap. To change the thickness, you mechanically adjust the spacing between the two rollers.

In this process, however, excess coating must be wiped away, making mechanical coating fairly wasteful. More importantly, these coating systems have difficulty meeting the demanding requirements for thinner coating thicknesses.

Thus, slot-die’s quality and performance in critical areas like the following give it a clear edge over mechanical coating systems (see the comparison table further below for more details):

Thinness. The slot-die process enables minimum wet thicknesses of 2 microns, far exceeding the various mechanical metering coating systems.

Uniformity. A slurry that is volumetrically pre-metered and dispensed directly through the slot-die head produces minimal down-web thickness variation and exceptional cross-web uniformity.

Shear. Slurry coatings contain microscopic jagged particles that can increase shear, which is the grinding of the fluid upon itself. This abrasiveness can cause significant wear on mechanical metering systems. Slot-die, however, dispenses the slurry directly through the slot-die head and onto the substrate, thereby eliminating the grinding action.

Defect reduction. The slot-die head is further from the roller than mechanical metering systems, usually two to five times the wet-coating thickness. Given the slurry’s coarseness, this reduces the chances of a stuck particle creating streaks or other defects. With a slot-die head, the most you’ll get is a spot defect.

Comparison of Coating Methods

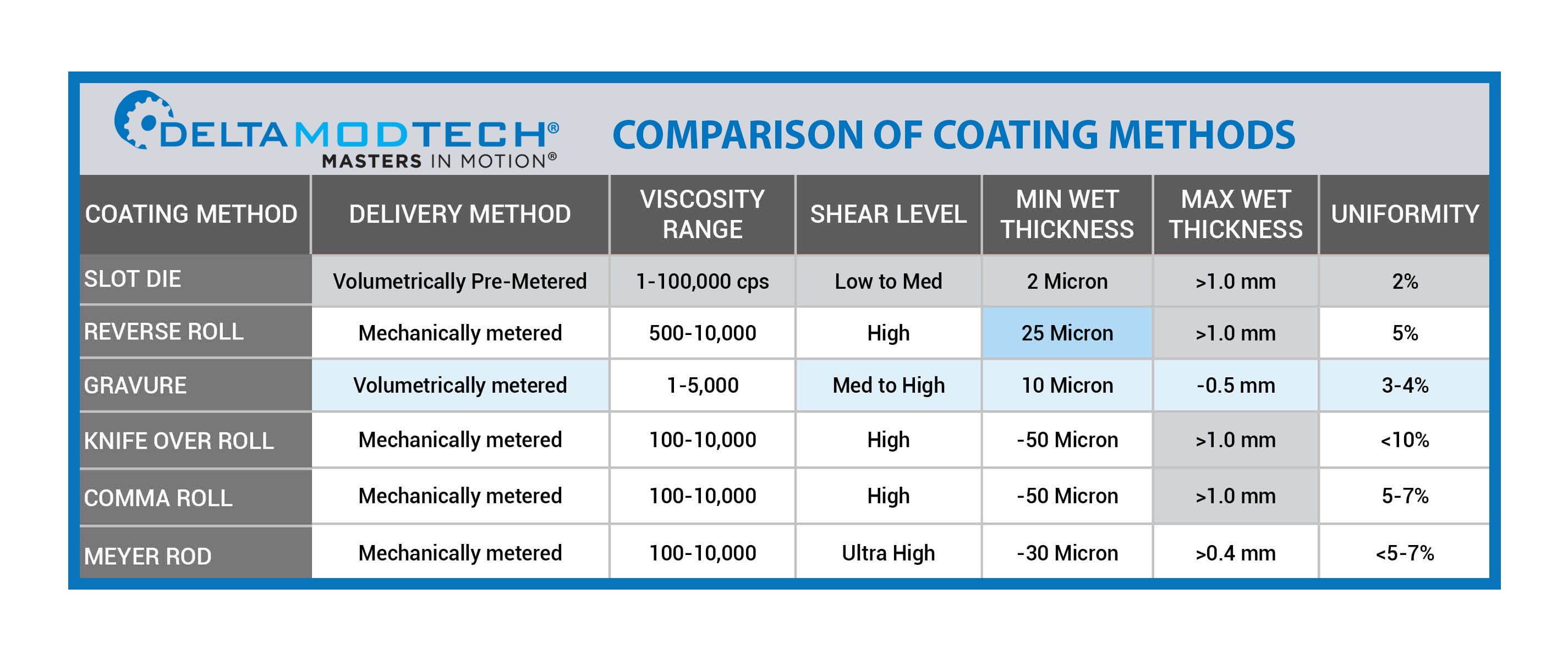

Comparison of slot-die to other coating methods

Why reliable patch-coating is so important

Thus far, we’ve discussed slot-die’s advantages in the context of continuous coating. But what we haven’t addressed is how slot-die is ideally suited for patch-coating (also known as skip coating, pattern coating, or intermittent coating).

Patch-coating involves starting and stopping the coating process in order to create intermittent sections of substrate without coating. More specifically, patch-coating done effectively requires that the coating be applied uniformly and accurately in all directions and then, for a brief moment, the coating process pauses to create a perfectly clean break in the coating. The process then resumes just as if the slurry were being applied continuously – until the next triggered break.

Before we delve into why this capability is so important for Li-ion battery manufacturing, let’s back up to address a few fundamentals. In the coating process of Li-ion batteries, a slurry comprising, most commonly, carbon, graphite, and a binder, is distributed onto a current collector substrate. Typically an aluminum foil is used for the cathode and a copper foil for the anode.

The foil films are then layered upon each other with a separator in between and can be either wound together or stacked in a rectangular shape (see image below). The current-collectors at the edges of these films are bonded together as tabs in a welding process, thus allowing like electrodes to be combined.

Example of films stacked in a battery
Example of films stacked in a battery

Importantly, the edges must be free of any coating in order to properly conduct current. However, without a reliable patch-coating system, a continuous coating must be applied – and that means those edges will unavoidably need to have dried slurry removed.

Given this manufacturing dilemma, let’s now consider the pivotal advantages that emerge when, instead of a continuous coating process, a manufacturer has an effective patch-coating system:

1. You eliminate downstream processing and improve efficiency. Without the benefit of patch-coating, manufacturers must remove a portion of the continuously applied coating material from the edges of the copper and aluminum foils. This requires a downstream processing step in which the unwanted coating is scrubbed or lasered away. Obviously, this adds significant time and cost to production – exactly the kind of step manufacturers are looking to eliminate in order to boost efficiency.

2. You generate little to no coating waste. Coatings are expensive, so wasting any in the manufacturing process is money lost. With reliable patch-coating, you not only remove a downstream step; you also eliminate the material waste involved with that step. Now you’re using all of that high-cost coating in the actual working part of the battery cell.

3. You improve safety. Let’s not forget that Li-ion coatings, at least for the time being, contain hazardous materials such as lithium, cobalt, nickel, and N-Methyl pyrrolidinone. By incorporating patch-coating into the process, manufacturers actually do more than increase process efficiency and productivity. Without the need to remove excess coating – which also means handling it and disposing of it – you’re eliminating a safety hazard to operators and others.

Quality must precede efficiency

To be clear, implementing patch-coating for Li-ion battery production has no significance to manufacturers if it means sacrificing the coating’s quality in the critical areas discussed above such as thinness and uniformity.

Slot-die is suited for patch-coating.

We already know that slot-die can meet the ever-increasing quality demands for Li-ion battery coating. But what’s especially compelling about slot-die is that its volumetric pre-metered system makes it perfectly suited for patch-coating. A major reason is that with slot-die, when you stop the slurry flow and then restart it, the slot-die head immediately dispenses the exact amount of fluid needed.

We’ve discussed the various ways that mechanical metering coating systems fail to meet the increasingly stringent quality standards for Li-ion batteries. But even if these systems could meet those standards, mechanical metering is ill-suited for delivering the high-quality patch-coating that Li-ion batteries require.

Imagine a hopper of coating material used in a mechanical coating system. Yes, you can stop the flow suddenly, but when you restart it, you cannot regulate an exact flow rate. That means you simply cannot produce the kind of high-quality patch-coating necessary for Li-ion batteries in particular.

What it takes to achieve effective patch-coating

The improved efficiency and cost-savings that come with incorporating patch-coating are significant. But manufacturers also need to understand what it takes to achieve an effective patch-coating system because the effort is not without its own challenges.

Fortunately, a number of supporting technologies in key performance areas like the following have enabled a new level of exceptional patch-coating capabilities:

Coating uniformity. Continuous cross-web and down-web mass measuring gauges can be used to fine-tune the coating thickness uniformity in real-time. Ultrasonic, X-ray, and beta radiation gauges are commonly used in this capacity.

Patch-coated battery electrode
Patch-coated battery electrode

Dimensional accuracy. Currently, dimensional accuracy of +/-1 mm is the target, but that could get tighter. Slot-die has already proven to be effective at maintaining accurate width dimensions. But the challenge has been to maintain an accurate length for both the coated patches and the non-coated area between those patches (see image above).

Through the use of high-resolution encoders to monitor the web length down to micrometers and servo-controlled actuators to manipulate the fluid flow in milliseconds, it’s now possible to maintain dimensions to less than a millimeter.

Repeatability. For quality control, it’s critical to not only know that the dimensions of each patch meet specifications but also to flag parts for removal downstream before they’re incorporated into a battery.

That need can now be met with inline high-resolution scanning cameras that measure each coating patch’s length and width. That information is then fed back to the machine to make corrections automatically.

Backside registration. Li-ion batteries typically require electrodes on both sides of the current collector, or foil. This requires registering the backside patches of coating to those on the frontside.

Fiber-optic detection of the frontside patch is used to trigger the start of a backside patch. Then, by utilizing dual high-resolution cameras that look at both sides of the web, the registration can be fine-tuned to tolerances within 1 mm.

Tandem coating systems for coating both sides. To increase yields and minimize material handling and downstream coating, machine manufacturers are building tandem coating systems.

This enables one side to be coated, dried, and measured. That side is then reversed, allowing the other side to be immediately coated, dried, and measured. With this process, at the end of the machine you are winding up rolls of finished product that are fully measured and ready for the next step in the battery making process.

Stay competitive as Li-ion batteries become a commodity

Incorporating patch-coating into the Li-ion battery production process creates opportunities to improve efficiency, increase throughput, decrease waste, and save money.

The manufacture of Li-ion batteries is fast-becoming a commodity-driven industry. That means competition within the Li-ion battery manufacturing sector will likely grow more and more fierce.

Li-ion battery manufacturers who leverage the latest advances in slot-die’s patch-coating capabilities can gain a significant edge. More specifically, they can position themselves to not only cut production cost margins but also meet the increasingly rigorous standards of the Li-ion battery industry.
