The Delta Crusader® FLEX

Top of the line flexibility | Fully loaded and ready to go

 The Ultimate in Process Flexibility

Crusader flex base model

The Flex package

Machine comes complete and ready to perform a variety of processes. Simply load your specification and tooling

Over 30 years ago we designed the Crusader Converter from the ground up to be the most flexible and precise roll to roll die cutting machine on the market.

This first-of-its-kind machine continues to be the industry leading narrow web die cutting platform for contract converting. With a fresh update in 2020 that has improved flexibility, ergonomics, and usability, along with all the great features of the original model.

Top of the line Flexibility

Includes:

Rotary Modules and Accessories:

  • 9 Die Modules
  • 4 Hydrajack Truck Bridge Assemblies
  • 5 Nip Rollers
  • 9 Pneumatic Hook Ups with Touchscreen Controls
  • 5 Pneumatic Bridge Press Assemblies with Touchscreen Controls
  • Point to Point Registration
  • P-Cam
  • 4 Die Homing Sensors
  • 4 T-Slot Registration Sensors
  • 1 Web Support for Sheeter
  • 1 Dual/ Single Bullnose Assembly

Unwind/ Rewind Modules (3″ core) and Accessories

  • 2 Fixed Unwind Modules with Steering
  • 4 Fixed Unwind/ Rewind Modules without Steering
  • 6 Moveable Unwind/ Rewind Modules without Steering

Other

  • 1 VFD Drive for vacuum Blower
  • 8 Idler Rollers, T- Slot Moveable 2″ dia.
  • 2 Splice Tables
  • Bases for T-Slot Modules

The Crusader® FLEX offers several additions:

– ModTech Connect™ Analytics Software

Mod-Track® Vision Inspection System

– Island Placement or Island Transfer

– Shingling Conveyor

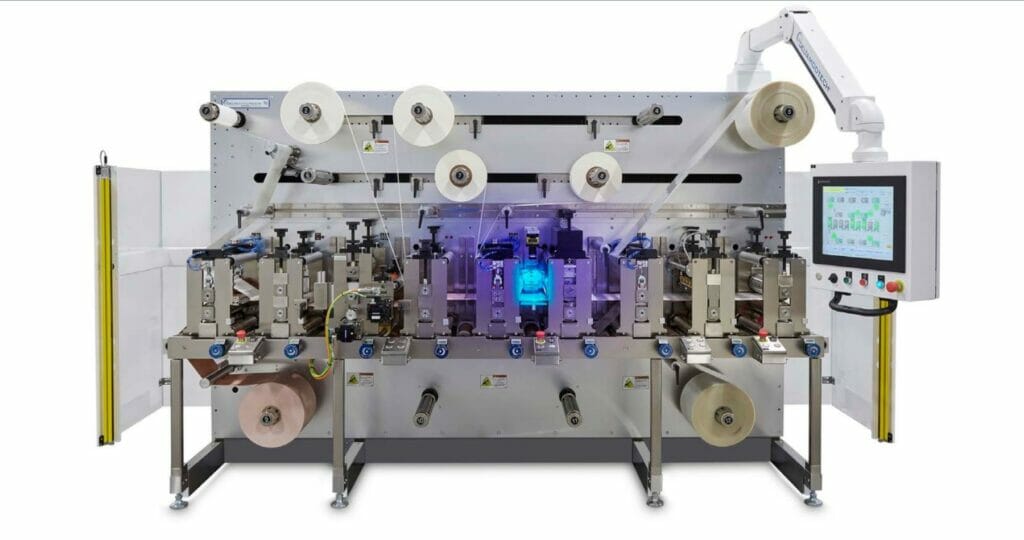

Crusader Flex full image

Flexible. Expandable. Reliable.

Full servo motor control, simple operator interface, hundreds converting modules,

rigid welded frame, best service in the industry.

Crusader® FLEX Converting System

at-a-glance

Crusader Flex with operator







FEATURES:

  • Each cutting, nipping, sealing, printing and winding station is servo controlled.
  • Advanced controls and closed loop registration provide the tightest tolerances available.
  • Expandable modular platform
  • Delta ModTech’s Intelli-MOD™ control system
  • Intuitive HMI touchscreen interface with Product Recipe recall
  • Quick change tooling
  • Rigid welded steel frame
  • Minimal maintenance
  • Worldwide service with online support



Request a Quote





Producing a highly functional, high-tolerance part.

“At Boyd, advanced manufacturing technologies increase our ability to provide our customers higher quality products with tighter tolerances. Our servo driven Crusader presses utilize both rotary and flex die technology to convert multiple layers of material and control island placement inline, ensuring part repeatability.”

Jeff Snedeker, Engineering Manager

Nathan Holm

The Crusader gives you so many options to do so many things. It’s like a dream.

Nathan Holm, PGC

Crusader Options

We have 100’s of predesigned ModTech modules that fit seamlessly on the Crusader Converter.

Crusader® FLEX Standard Technical Specifications


Max Web Width: 13” (330 mm)


Max Speed- Full Rotary: Up to 300 ft/min (91 m/min)* Higher speeds available upon request


Control System: Delta ModTech INTELLI-MOD™ control system


Drive System: Individual Servomotor Control


Cabinet Construction: Welded Steel Frame, Aluminum Front Plate 10′ long


* Process dependent



Request a Quote

Product Development

Delta's Proof of Principle Service

If your product or materials are still in the development phase, our in-house R&D facilities allow you to work the bugs out of your products and allow us to prove we have a solution to manufacture your parts.

Visit our Product Development page or Contact us to learn more.

FDA Validation, Documentation & Training

Delta is a Total Solution Provider

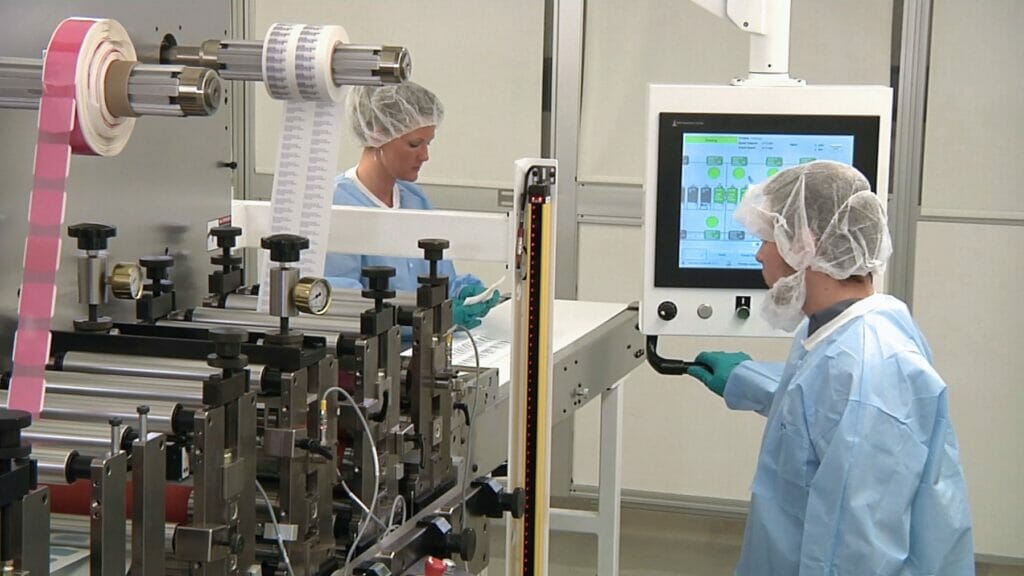

Medical device packager

As a manufacturer, you look to the machine builder as the expert on the equipment. This shouldn’t stop with the ability to supply useful specifications, test procedures, custom instructional material and advanced training. Our validation practices are modeled after GAMP and allow the flexibility to work with you and your project needs.

Visit our Validation and Training pages to learn more.

Machine Support

Passionate Service

Excellent service. You don’t know how important it is until you need it. We have you covered.

We invest in the resources to keep your machines up and running. From process changes, to spare parts, to total system retrofits, we are here to serve you. Online process support, upgrades, and
troubleshooting are just a phone call away.

Visit our Machine Support page to learn more.
